**<u>WEIGHT & CAPACITY</u>**
• **Operating weight:** 2072.3 lbs (940 kg)
• **Fuel tank capacity:** 7.9 gal (30 L)
• **Lubricating oil capacity:** 1.0 gal (3.7 L)
• **Hydraulic reservoir capacity:** 8.2 gal (31 L)

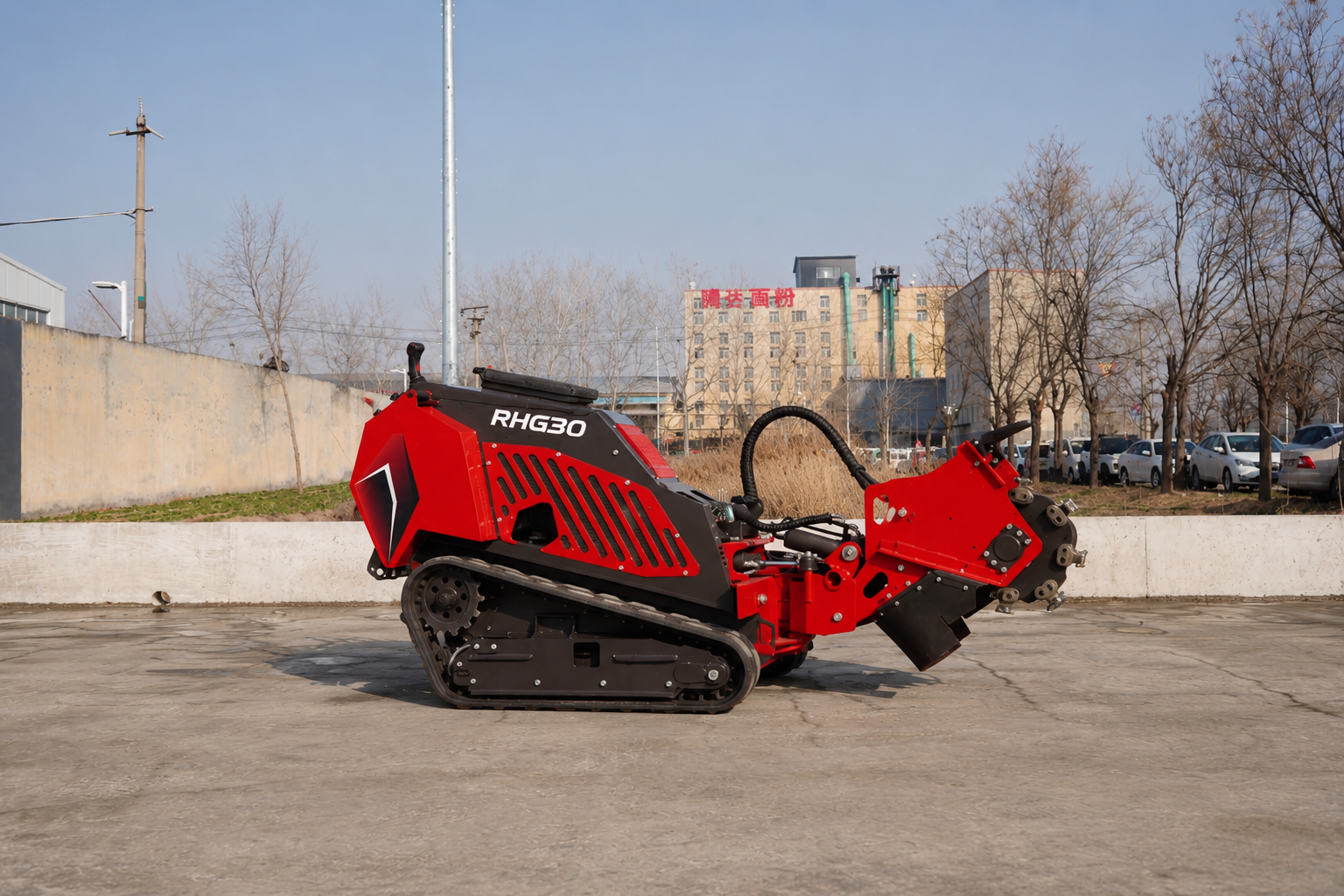

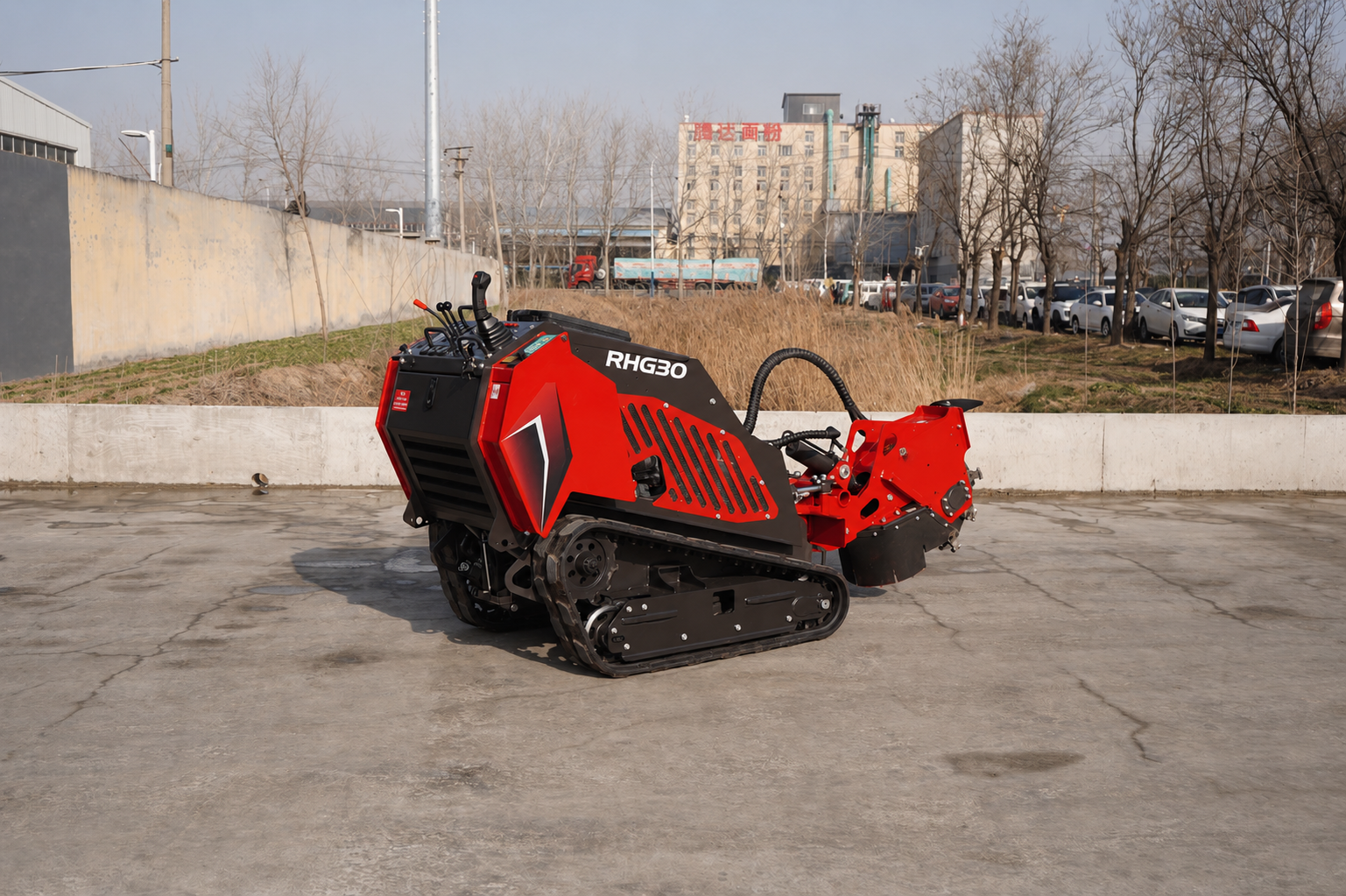

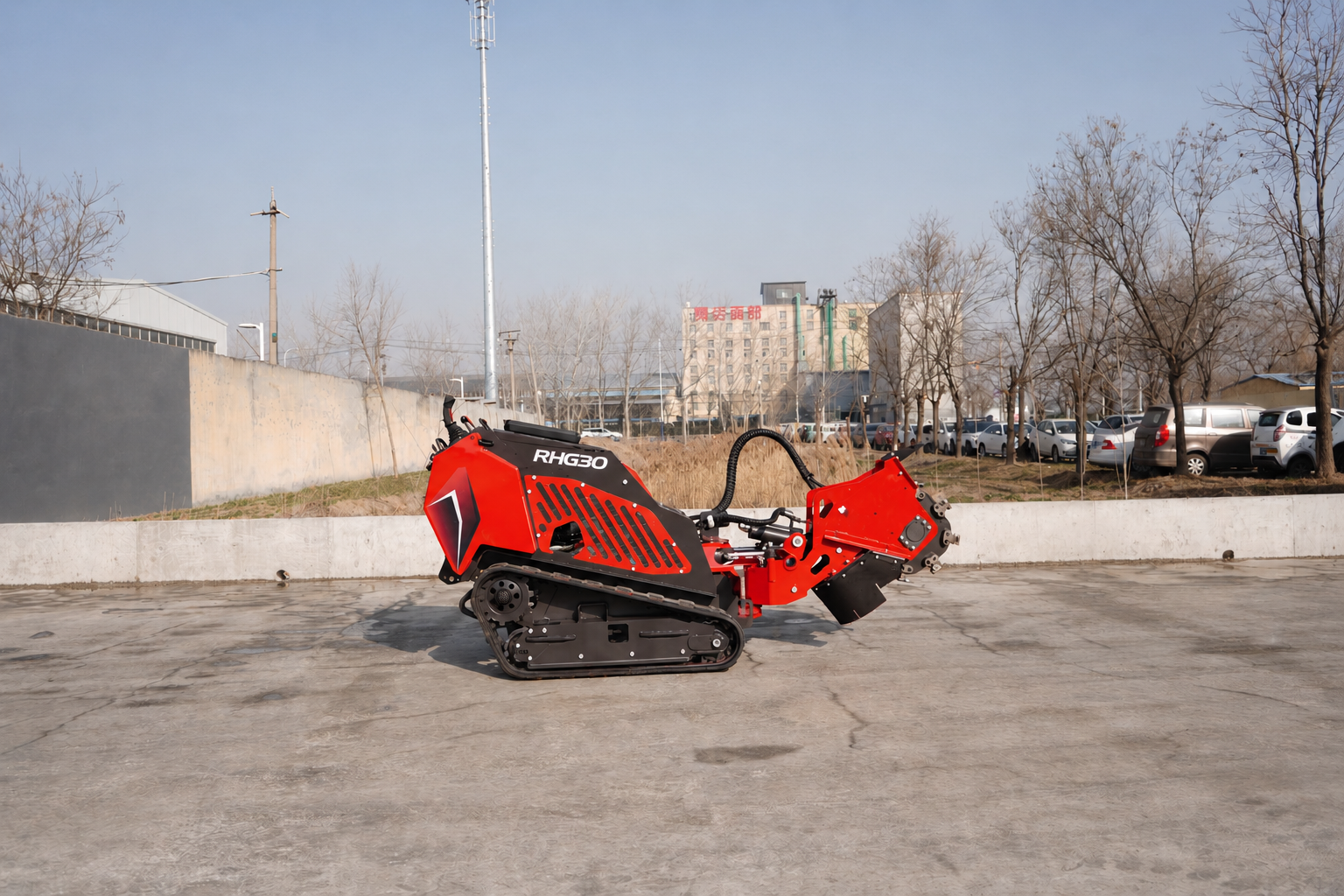

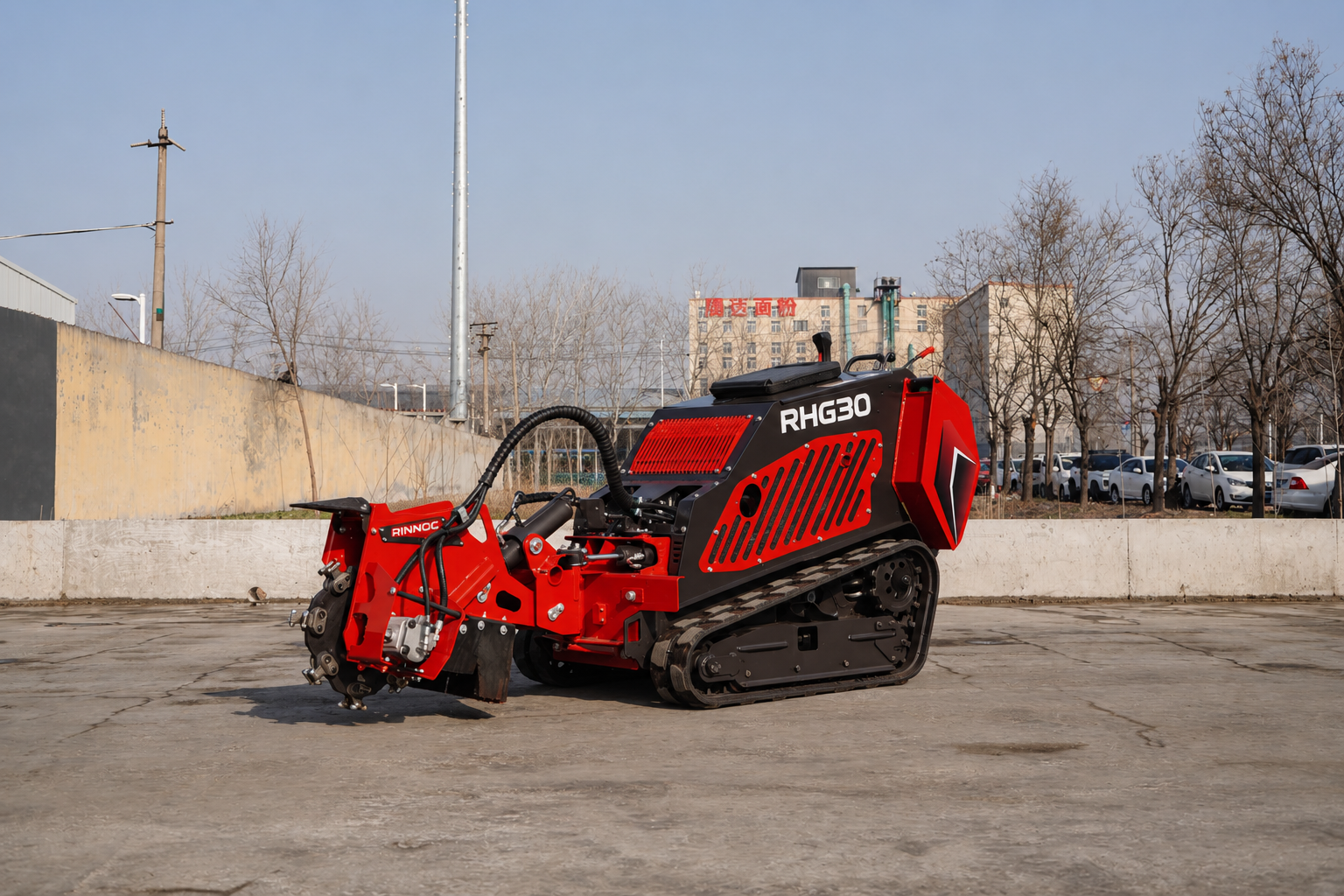

RHG30 Stump Grinder
Specialty Machinery, Stump GrinderMSRP: $19,500.00
Operating weight: 2072lbs
Cutting height max 360mm
Cutting depth max 367mm
Engine: Kubota D902
Number of Cylinders: 3
Availability: In stock
• **A Operating height:** 33.94 in (862 mm)
• **B Overall length of machine:** 99.80 in (2535 mm)
• **C Overall machine height:** 50.31 in (1278 mm)
• **D Wheelbase:** 33.66 in (855 mm)
• **E Track length:** 48.62 in (1235 mm)
• **F Ground clearance:** 4.61 in (117 mm)
• **I Total track width:** 35.83 in (910 mm)
• **J Track width:** 7.09 in (180 mm)
• **A Operating height:** 33.94 in (862 mm)
• **B Overall length of machine:** 99.80 in (2535 mm)
• **C Overall machine height:** 50.31 in (1278 mm)
• **D Wheelbase:** 33.66 in (855 mm)
• **E Track length:** 48.62 in (1235 mm)
• **F Ground clearance:** 4.61 in (117 mm)
• **I Total track width:** 35.83 in (910 mm)
• **J Track width:** 7.09 in (180 mm)
• **A Operating height:** 33.94 in (862 mm)
• **B Overall length of machine:** 99.80 in (2535 mm)
• **C Overall machine height:** 50.31 in (1278 mm)
• **D Wheelbase:** 33.66 in (855 mm)
• **E Track length:** 48.62 in (1235 mm)
• **F Ground clearance:** 4.61 in (117 mm)
• **I Total track width:** 35.83 in (910 mm)
• **J Track width:** 7.09 in (180 mm)
**<u>ENGINE SPECIFICATIONS</u>**
• **Engine Manufacturer & Model:** KUBOTA D902
• **Fuel Type:** Diesel
• **Rated Power:** 15.82 hp (11.8 kW)
• **Emissions Compliance:** EPA Tier 4/EU Stage V
• **Number of Cylinders:** 3
• **Displacement:** 0.237 gal (0.898 L)
• **Bore:** 2.83 in (72 mm)
• **Stroke:** 2.90 in (73.6 mm)
• **Rated Speed:** 2300 rpm
• **Flow rate of gear pump:** 4.76 gal/min (18 L/min)
• **Flow rate of piston pump:** 21.13 gal/min (80 L/min)
• **Flow rate of piston pump:** 21.13 gal/min (80 L/min)
RHG30 Stump Grinder
The RHG30 Stump Grinder is a high-performance log splitter designed for maximum efficiency in confined spaces. With a narrow width of just 35.8 inches it easily navigates tight work areas, making it ideal for construction sites, landscaping, and industrial projects where space is limited.
Equipped with a KUBOTA D902 three-cylinder diesel engine, the RHG30 delivers high power, reliability, and consistent performance, providing operators with confidence to handle any job.
Compact Yet Powerful
Despite its compact size, the RHG30 is built for strength and durability. The loader features a piston pump and Kubota D902 Engine, providing excellent hydraulic performance.
Key Features
- KUBOTA D902Engine – Reliable, high-performance diesel power.
- Load-Sensitive Hydraulic System – Smooth and precise operation for various tasks.
- Compact Design (910mm / 35.8 in width) – Maneuvers easily in tight or confined areas.
- Piston Pump – Efficient hydraulic performance for lifting and loading.
- Versatile Operation – Ideal for construction, landscaping, and industrial work.
Performance and Practicality
The RHG30 Stump Grinder weighs 2,072 lbs combining stability and mobility for various job site conditions. While its compact dimensions allow it to work where larger saws cannot.
Designed for efficiency, durability, and precision, the RHG30 ensures operators can complete tasks confidently and effectively in any environment.
Why Choose the RHG30?
The RHG30 is perfect for professionals who need a powerful yet compact grinder capable of navigating tight spaces while handling heavy loads. Its KUBOTA engine, advanced hydraulic system, and durable construction make it a reliable tool for high-demand operations.
Whether in construction, landscaping, or industrial settings, the RHS1000 provides strength, versatility, and efficiency, making it a smart and practical addition to any equipment fleet.
